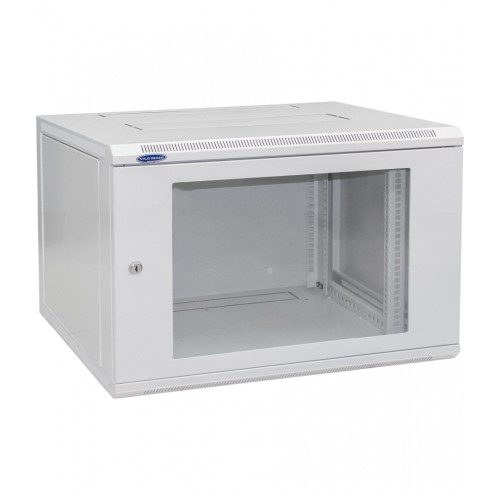

Wall-mounted server cabinet SC-7U/6.6C

The wall-mounted server cabinet SC-7U/6.6C is a fully welded structure designed for mounting 19-inch standard server equipment. Thanks to the wall mounting, the cabinet allows for efficient use of the room space. The triplex glass door in a metal frame allows for viewing the equipment without the need to open it. The cabinet is mounted using a plate that is fixed to the wall at four points, and additional mounts at the bottom increase the stability of the structure.

Features of the wall-mounted cabinet SC-7U/6.6C with a fully welded body

The cabinet has dimensions of 600x415x600 mm (WxHxD) and a height of 7U. The body is painted with powder coating in light gray color (RAL-7035). The surface is pre-treated, which increases resistance to corrosion. The design includes ventilation perforations at the top and bottom, which ensure optimal air exchange for cooling server equipment. The cabinet is compatible with additional components such as stationary, console, and pull-out shelves, socket modules, ventilation systems, and circuit breaker units.

Installation is performed on the wall using a special plate. The mount is fixed with anchor fasteners at four points, and the additional lower mounts provide increased reliability of the cabinet's fixation. "Eurolock" type locks ensure reliable protection against unauthorized access. The cabinet is suitable for use in server rooms, network nodes, and telecommunications systems.

Advantages of the wall-mounted server cabinet:

• Tempered triplex glass and a fully welded body provide load resistance.
• Convenient access to the internal space through opening side panels.
• Possibility to install additional modules, ventilation and socket modules, shelves of various types.
• Side panels with latches provide convenient access to the contents.
• Wall mounting allows for space saving.

UHL-MASH offers to buy the server cabinet SC-7U/6.6C in our online store. We provide a wide range of products, professional consultation, and timely delivery.
