Server cabinet floor-mounted SC-18U/6.8P

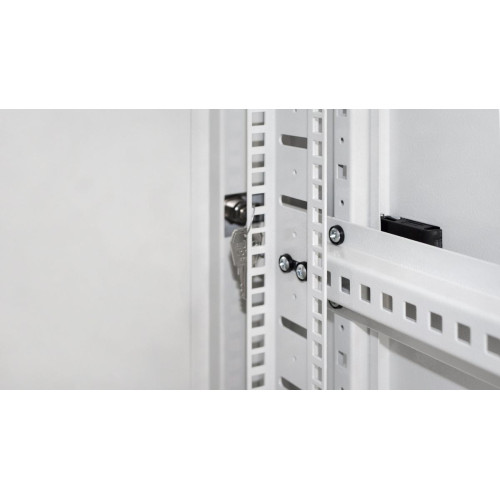

The floor-mounted server cabinet SC-18U/6.8P is used for storing server equipment, networking and communication devices, and uninterruptible power supply systems. The universal 19-inch rails make the model compatible with a wide range of equipment.

Features of the SC-18U/6.8P server cabinet for data centers, offices, and server rooms

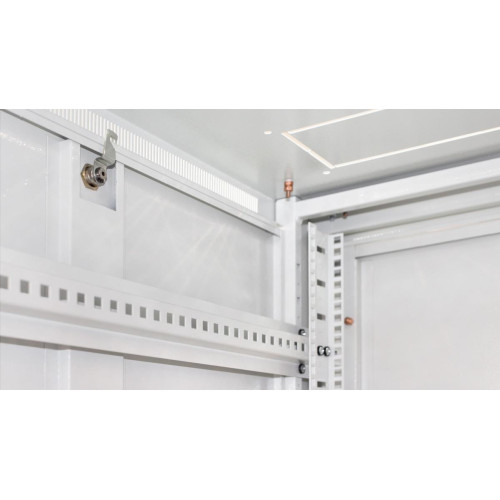

The cabinet has a height of 1000 mm (18U), a width of 600 mm, and a depth of 800 mm, allowing for the placement of equipment of various formats. Metal doors with perforation across the entire surface contribute to effective ventilation of the internal space. The model is made in RAL-7035 color. Perforated holes around the perimeter, at the top and bottom, ensure natural air circulation, which helps cool the equipment. Cable entry points located at the top and bottom of the cabinet provide convenient equipment connections. The door handle is equipped with a locking mechanism that regulates access to the internal equipment. If necessary, the door can be re-hung along with the handle on the other side for optimal opening.

The cabinet is transported assembled, which simplifies the installation process. The model supports additional equipment such as stationary, console, or sliding shelves, ventilation units, socket modules, and distribution blocks for circuit breakers.

Advantages of the SC-18U/6.8P floor-mounted server cabinet:

• Metal doors with perforation contribute to effective cooling of the equipment.

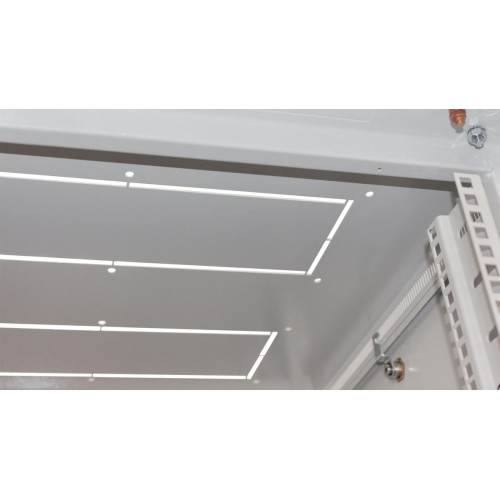

• Perforated holes provide ventilation around the entire perimeter of the structure.
• Cable entry points at the top and bottom facilitate equipment connections.
• The possibility of additional equipment increases the functionality of the cabinet.

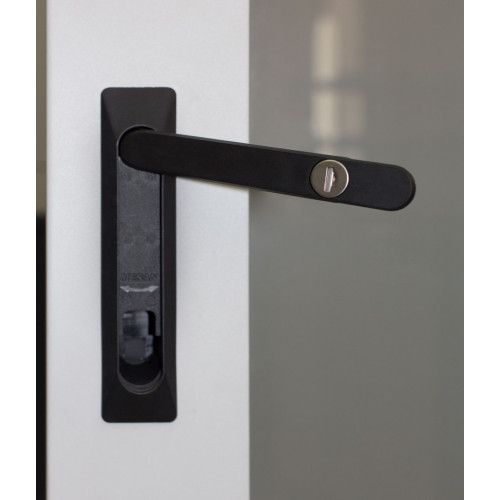

• The side-sliding handle provides convenience in use.

Order the SC-18U/6.8P server mounting cabinet from the online store of the manufacturer UHL-MASH. We offer a wide selection of products, professional consultation, and delivery across Ukraine. This model can be purchased on our website.
